Datasheet Details
| Part number | M54D2G16128A |
|---|---|
| Manufacturer | ESMT |
| File Size | 5.71 MB |
| Description | LPDDR2 SDRAM |
| Datasheet |

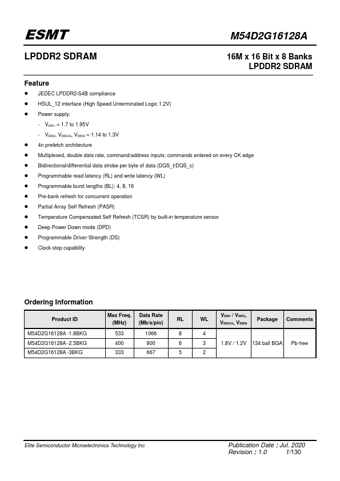

 M54D2G16128A-ESMT.pdf
|
| Part number | M54D2G16128A |
|---|---|
| Manufacturer | ESMT |
| File Size | 5.71 MB |
| Description | LPDDR2 SDRAM |
| Datasheet |
M54D2G16128A-ESMT.pdf
|
Ball Name Type CK_t, CK_c Input CKE Input CS_n CA[n:0] DQ[n:0] Input Input I/O DQS[n:0]_t, I/O DQS[n:0]_c DM[n:0] Input M54D2G16128A Function Clock: CK_t and CK_c are differential clock inputs.All Double Data Rate (DDR) CA inputs are sampled on both positive and negative edge of CK_t.Single Data Rate (SDR) inputs, CS_n and CKE, are sampled at the positive Clock edge.Clock is defined as the differential pair, CK_t and CK_c.The positive Clock edge is defined by the crosspoint of a
