AG602-89 Datasheet - ETC

InGaP HBT Gain Block

AG602-89 Features

* DC

* 3500 MHz +18.5 dBm P1dB at 900 MHz +33 dBm OIP3 at 900 MHz 14 dB Gain at 900 MHz Single Voltage Supply Internally matched to 50 Ω Lead-free/Green/RoHScompliant SOT-89 Package

* MTTF > 1000 years Product Descr

AG602-89 General Description

The AG602-89 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG602-89 typically provides 14 dB of gain, +33 dBm Output IP3, and +18.5 dBm P1dB. The device combines dependable performance with superb quality to maintain MTTF va.

AG602-89 Datasheet (240.94 KB)

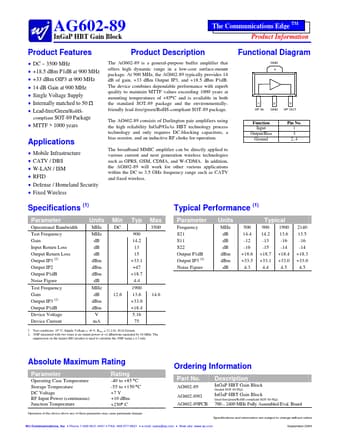

Preview of AG602-89 PDF

Datasheet Details

Part number:

AG602-89

Manufacturer:

ETC

File Size:

240.94 KB

Description:

Ingap hbt gain block.
