AG603-89G

InGaP HBT Gain Block

AG603-89G Features

* DC

* 3000 MHz

* +19.5 dBm P1dB at 900 MHz

* +33 dBm OIP3 at 900 MHz

* 18.5 dB Gain at 900 MHz

* Single Voltage Supply

* SOT-89 package

* Internally matched to 50 Ω Functional Block Diagram Backside Paddle - GND 1 RF IN 2 GND 3 RF

AG603-89G General Description

The AG603-89 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG603-89 typically provides 18.5 dB of gain, +33 dBm OIP3, and +19.5 dBm P1dB. The device combines dependable performance with consistent quality to maintain MTTF va.

AG603-89G Datasheet (471.07 KB)

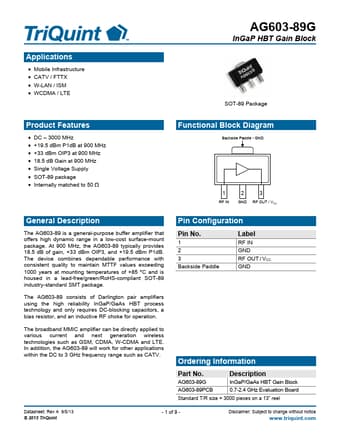

Preview of AG603-89G PDF

Datasheet Details

Part number:

AG603-89G

Manufacturer:

TriQuint Semiconductor

File Size:

471.07 KB

Description:

Ingap hbt gain block.
Applications

* Mobile Infrastructure

* CATV / FTTX

* W-LAN / ISM

* WCDMA / LTE AG603-89G InGaP HBT Gain Block AG603G .
