AG602-89G

InGaP HBT Gain Block

AG602-89G Features

* DC

* 3500 MHz

* +18.5 dBm P1dB at 900 MHz

* +33 dBm OIP3 at 900 MHz

* 14 dB Gain at 900 MHz

* Single Voltage Supply

* SOT-89 package

* Internally matched to 50 Ω Functional Block Diagram Backside Paddle - GND 1 RF IN 2 GND 3 RF OU

AG602-89G General Description

The AG602-89G is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surfacemount package. At 900 MHz, the AG602-89 typically provides 14 dB of gain, +33 dBm OIP3, and +18.5 dBm P1dB. The device combines dependable performance with consistent quality to maintain MTTF valu.

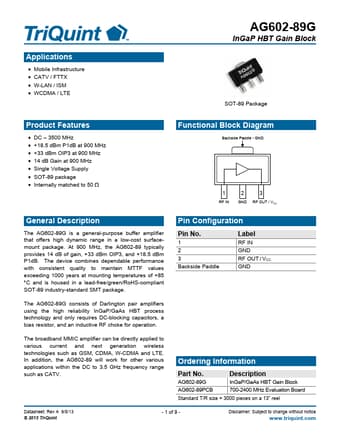

AG602-89G Datasheet (476.04 KB)

Preview of AG602-89G PDF

Datasheet Details

Part number:

AG602-89G

Manufacturer:

TriQuint Semiconductor

File Size:

476.04 KB

Description:

Ingap hbt gain block.
Applications

* Mobile Infrastructure

* CATV / FTTX

* W-LAN / ISM

* WCDMA / LTE AG602-89G InGaP HBT Gain Block AG602G .
