AG603 Description

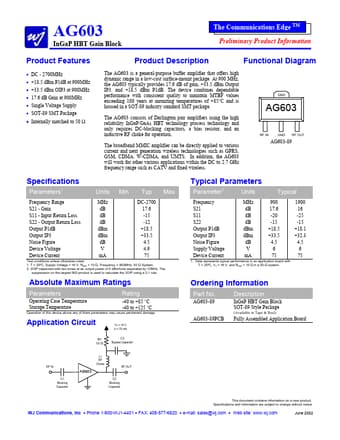

AG603 InGaP HBT Gain Block The Communications Edge TM Preliminary Product Information Product .
Functional Diagram.
DC - 2700MHz.
+18.
+33.
17.
AG603 Applications
* within the DC to 2.7 GHz frequency range such as CATV and fixed wireless. GND
AG603
RF IN
GND RF OUT
AG603-89
Specifications
Parameters1
Units Min Typ Max
Frequency Range
MHz
DC-2700
S21 - Gain
dB 17.6
S11 - Input Return Loss
dB
-15
S22 - Output Return Loss
dB
-12
Output P1dB
dBm
