AG603-89

InGaP HBT Gain Block

AG603-89 Features

* DC

* 3000 MHz +19.5 dBm P1dB at 900 MHz +33 dBm OIP3 at 900 MHz 18.5 dB Gain at 900 MHz Single Voltage Supply Internally matched to 50 Ω Lead-free/Green/RoHScompliant SOT-89 Package

* MTTF > 1000 years Product Des

AG603-89 General Description

The AG603-89 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG603-89 typically provides 18.5 dB of gain, +33 dBm Output IP3, & +19.5 dBm P1dB. The device combines dependable performance with superb quality to maintain MTTF va.

AG603-89 Datasheet (531.61 KB)

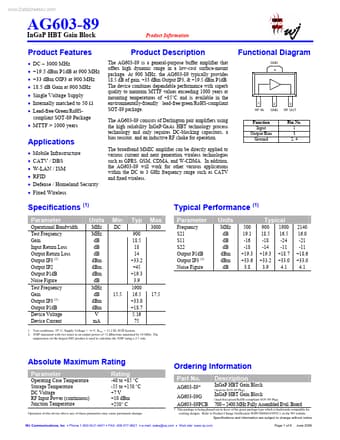

Preview of AG603-89 PDF

Datasheet Details

Part number:

AG603-89

Manufacturer:

WJ Communication

File Size:

531.61 KB

Description:

Ingap hbt gain block.
