AG604-86

InGaP HBT Gain Block

AG604-86 Features

* DC

* 6000 MHz

* 20.5 dB Gain @ 900 MHz

* +19.5 dBm P1dB @ 900 MHz

* +33 dBm OIP3 @ 900 MHz

* Single Voltage Supply

* Internally matched to 50 Ω

* Robust 1000V ESD, Class 1C

* Lead-free/green/RoHS-compliant SOT-86 package Appli

AG604-86 General Description

The AG604-86 is a general-purpose buffer amplifier that offers high dynamic range in a low-cost surface-mount package. At 900 MHz, the AG604-86 typically provides 20.5 dB gain, +33 dBm OIP3, and +19.5 dBm P1dB. The device combines dependable performance with consistent quality to maintain MTTF value.

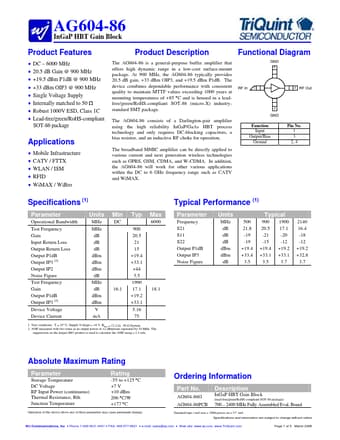

AG604-86 Datasheet (192.62 KB)

Preview of AG604-86 PDF

Datasheet Details

Part number:

AG604-86

Manufacturer:

TriQuint Semiconductor

File Size:

192.62 KB

Description:

Ingap hbt gain block.
