MS5534B - BAROMETER MODULE

MS5534B Description

www.DataSheet4U.com MS5534B BAROMETER MODULE * 10 - 1100 mbar absolute pressure range * 6 coefficients for software compensation sto.
The MS5534B is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC.

MS5534B Features

* Supply voltage 2.2 V to 3.6 V
* Low supply current
* -40° C to +125° C operation temperature

MS5534B Applications

* Mobile altimeter / barometer systems
* Weather control systems
* Adventure or multi-mode watches
* GPS receivers BLOCK DIAGRAM VDD MCLK Digital Interface ADC dig. Filter Input MUX SENSOR +IN DIN DOUT SCLK -IN Sensor Interface IC SGND Memory (PROM) 64 bits GND

📥 Download Datasheet

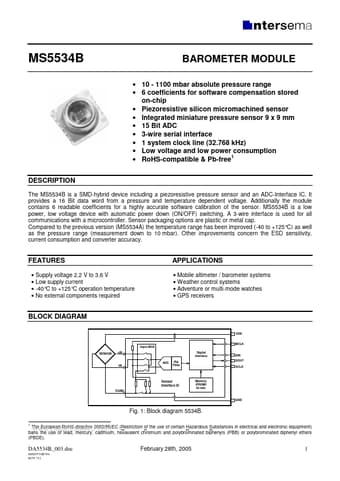

Preview of MS5534B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MS5534B
Manufacturer
ETC
File Size
1.05 MB
Datasheet
MS5534B_ETC.pdf
Description
BAROMETER MODULE
