MS5534C Datasheet - TE

MS5534C Barometer Module

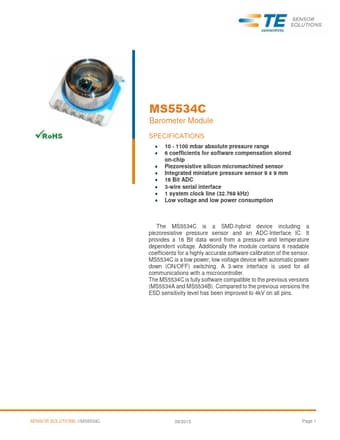

MS5534C Barometer Module SPECIFICATIONS 10 - 1100 mbar absolute pressure range 6 coefficients for software compensation stored on-chip Piezoresistive silicon micromachined sensor Integrated miniature pressure sensor 9 x 9 mm 16 Bit ADC 3-wire serial interface 1 system clock line (32.768 kHz) Low voltage and low power consumption The MS5534C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16 B.

MS5534C Features

* Supply voltage 2.2 V to 3.6 V

* Low supply current

* -40°C to +125°C operation temperature

* No external components required APPLICATIONS

* Mobile altimeter / barometer systems

* Weather control systems

* Adventure or multi-mode watches

* GPS receivers BLOCK DIAGRAM
