MS5535B - PRESSURE SENSOR MODULE

MS5535B Description

MS5535B (RoHS *) PRESSURE SENSOR MODULE * 0 - 14 bar absolute pressure range * 6 coefficients for software compensation stored on-.
The MS5535B is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC.

MS5535B Features

* Supply voltage 2.2 V to 3.6 V
* Low supply current
* -40°C to +125°C operation temperature

MS5535B Applications

* 15 Bit ADC resolution pressure measurement and control systems
* Mobile water depth measurement systems

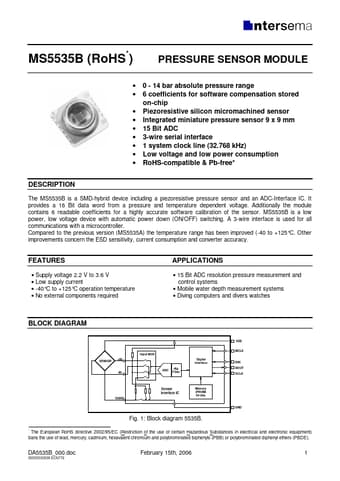

* Diving computers and divers watches BLOCK DIAGRAM SENSOR +IN -IN Input MUX ADC dig. Filter Digital Interface VDD MCLK DIN DO UT SCLK SGND Sensor Interface IC
