MS5536C Datasheet - TE

MS5536C SMD Gage Pressure Module

Pin Name Pin N/C 1 VDD 2 MCLK 3 DIN 4 DOUT 5 SCLK 6 GND 7 N/C 8 N/C 9 N/C 10 N/C 11 N/C 12 PV 13 PEN 14 Type P I I O I G N I Function Not Connected Positive Supply Voltage Master Clock (32.768kHz) Data Input Data Output Serial Data Clock Ground Not Connected Not Conne.

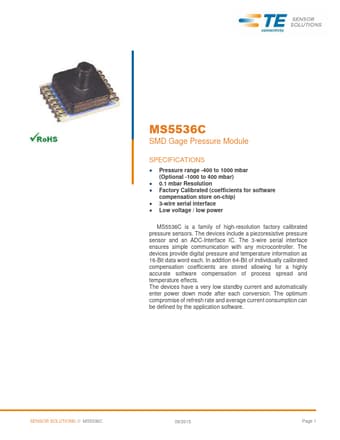

MS5536C SMD Gage Pressure Module SPECIFICATIONS Pressure range -400 to 1000 mbar (Optional -1000 to 400 mbar) 0.1 mbar Resolution Factory Calibrated (coefficients for software compensation store on-chip) 3-wire serial interface Low voltage / low power MS5536C is a family of high-resolution factory calibrated pressure sensors. The devices include a piezoresistive pressure sensor and an ADC-Interface IC. The 3-wire serial interface ensures simple communication with an.

MS5536C Features

* 16-Bit ADC Resolution

* Supply voltage 2.2 V to 3.6 V

* Low supply current

* -40°C to +85°C

* Small size

* No external components required APPLICATIONS

* Medical application

* Blood pressure meter

* Air flow measurement

* HVAC application BLOCK DIAGRAM SENS
