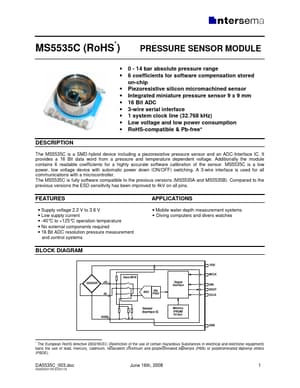

MS5535C Datasheet, Module, Intersema

MS5535C Features

• Module
• Supply voltage 2.2 V to 3.6 V
• Low supply current
• -40°C to +125°C operation temperature
• No external components required
• 16 Bit ADC resol

PDF File Details

Part number:

MS5535C

Manufacturer:

Intersema

File Size:

725.39kb

Download:

📄 Datasheet

Description:

Pressure sensor module. The MS5535C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC. It provides a 16 Bit data word

MS5535C Application

• Applications
• Mobile water depth measurement systems
• Diving computers and divers watches BLOCK DIAGRAM SENSOR +IN -IN SGND Inp

TAGS

MS5535C

Intersema
