MS5541-30C MINIATURE 30 bar MODULE

* 0 * 30 bar absolute pressure range * 6 coefficients for a software compensation stored on-chip * Piezoresistive silicon micromachined sensor * Integrated pressure sensor 6.2x6.4 mm * 16 Bit ADC * 3-wire serial interface * 1 system cl.

MS5541-30C Features

* APPLICATIONS

* Resolution 3.0 mbar

* Supply voltage 2.2 V to 3.6 V

* Operating current < 5uA

* Standby current < 0.1uA

* -40°C to +85°C

* No external components required BLOCK DIAGRAM

* Diving computers and divers watches

* Mobile wa

MS5541-30C-Intersema.pdf

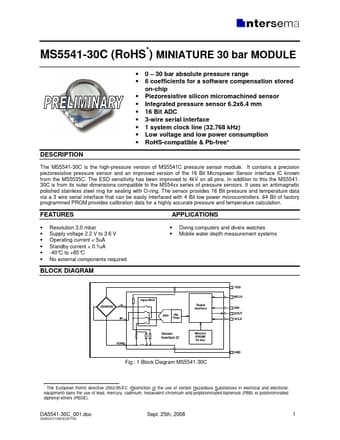

MS5541-30C Datasheet Preview — Preview of MS5541-30C PDF

Datasheet Details

Part number:

MS5541-30C

Manufacturer:

Intersema

File Size:

275.31 KB

Description:

Miniature 30 bar module.
