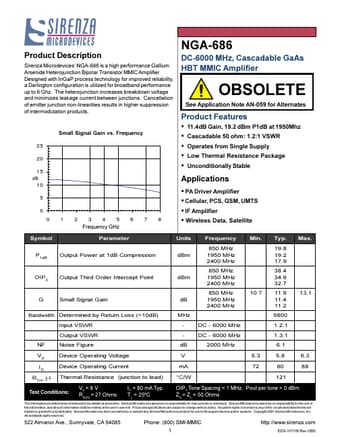

NGA-686 DC-6000 MHZ CASCADABLE GAAS HBT MMIC AMPLIFIER

Sirenza Microdevices NGA-686 is a high performance Gallium Arsenide Heterojunction Bipolar Transistor MMIC Amplifier. Designed with InGaP process technology for improved reliability, a Darlington configuration is utilized for broadband performance up to 6 Ghz. The heterojunction increases breakdown.

NGA-686 Features

* 11.4dB Gain, 19.2 dBm P1dB at 1950Mhz Cascadable 50 ohm: 1.2:1 VSWR Operates from Single Supply Low Thermal Resistance Package Unconditionally Stable Applications PA Driver Amplifier Cellular, PCS, GSM, UMTS IF Amplifier Wireless Data, Satellite Units dBm Frequency 850 M Hz 1950 M
