NGA-689 - DC-5000 MHz / Cascadable GaAs HBT MMIC Amplifier

Stanford Microdevices’ NGA-689 is a high performance Gallium Arsenide Heterojunction Bipolar Transistor MMIC Amplifier.

Designed with InGaP process technology for improved reliability, a Darlington configuration is utilized for broadband performance up to 5 Ghz.

The heterojunction increases breakdow

NGA-689 Features

* • 11.7dB Gain, 18.9 dBm P1dB at 1950Mhz • Cascadable 50 ohm: 1.4:1 VSWR • Patented GaAs HBT Technology • Operates from Single Supply • Low Thermal Resistance Package • Unconditionally Stable Applications • Cellular, PCS, CDPD • Wireless Data, SONET U nits Min. Ty p. 19.9 18.9 17.9 36.9 33.6 32.1 11.

NGA-689_ETC.pdf

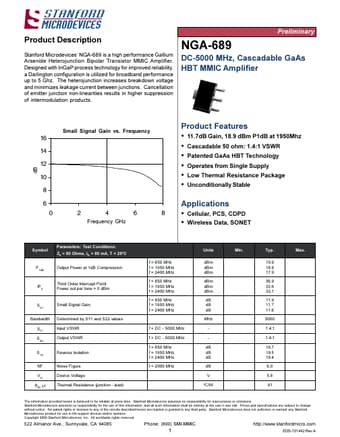

Preview of NGA-689 PDF
