NGA-386 Datasheet - Stanford Microdevices

Cascadable GaAs HBT MMIC Amplifier

NGA-386 Features

* High Gain: 18.9dB at 1950Mhz

* Cascadable 50 ohm: 1.2:1 VSWR

* Patented GaAs HBT Technology

* Operates from Single Supply

* Low Thermal Resistance Package

* Unconditionally Stable Applications

* Cellular, PCS, CDPD

* Wireless Data, SO

NGA-386 General Description

Stanford Microdevices’ NGA-386 is a high performance Gallium Arsenide Heterojunction Bipolar Transistor MMIC Amplifier. Designed with InGaP process technology for improved reliability, a Darlington configuration is utilized for broadband performance up to 5 Ghz. The heterojunction increases breakdow.

NGA-386 Datasheet (427.05 KB)

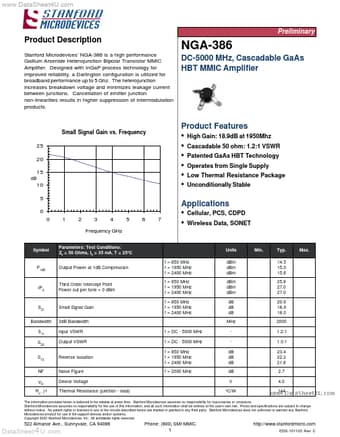

NGA-386 Datasheet Preview — Preview of NGA-386 PDF

Datasheet Details

Part number:

NGA-386

Manufacturer:

Stanford Microdevices

File Size:

427.05 KB

Description:

Cascadable gaas hbt mmic amplifier.
