Part number: NGA-586
Manufacturer: Sirenza Microdevices
File Size: 404.55KB
Download: 📄 Datasheet
Description: DC-5.5 GHZ CASCADABLE IN GAP /GAAS MMIC AMPLIFIER
High Gain : 18.6 dB at 1950 MHz Cascadable 50 Ohm Patented InGaP Technology Operates From Single Supply Low Thermal Resistance Package
0
20 Gain (dB)
IRL
-10.
PA Driver Amplifier Cellular, PCS, GSM, UMTS IF Amplifier Wireless Data, Satellite
Units dB dBm dBm M Hz dB dB d.

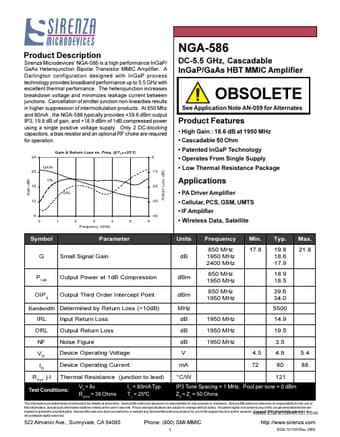

NGA-586
Sirenza Microdevices NGA-586 is a high performance InGaP/ GaAs Heterojunction Bipolar Transistor MMIC Amplifier. A Darlington configuration designed with InGaP process technology provides broadband performance up to 5.5 GHz with excellent .
