NGA-489 Datasheet - Sirenza Microdevices

InGaP/GaAs HBT MMIC Amplifier

NGA-489 Features

* High Gain : 14.5 dB at 1950 MHz Cascadable 50 Ohm Patented InGaP Technology Operates From Single Supply Low Thermal Resistance Package 20 15 Gain (dB) GAIN IRL 0 -10 -20 -30 ORL Return Loss (dB) 10 5 0 0 Applications PA Driver Amplifier Cellular, PCS, GSM, UMTS IF Amplifier Wi

NGA-489 General Description

NGA-489 Sirenza Microdevices NGA-489 is a high performance InGaP/ GaAs HBT MMIC Amplifier. A Darlington configuration designed with InGaP process technology provides broadband performance up to 10 GHz with excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes .

NGA-489 Datasheet (421.34 KB)

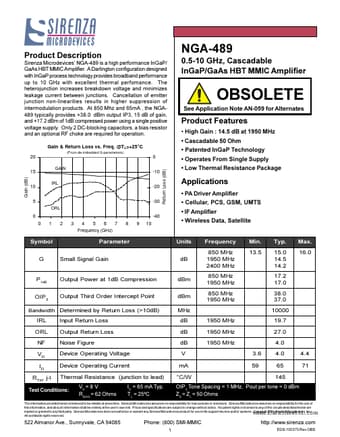

NGA-489 Datasheet Preview — Preview of NGA-489 PDF

Datasheet Details

Part number:

NGA-489

Manufacturer:

Sirenza Microdevices

File Size:

421.34 KB

Description:

Ingap/gaas hbt mmic amplifier.
