OV7725 - Camera Module

Product Overview

📥 Download Datasheet

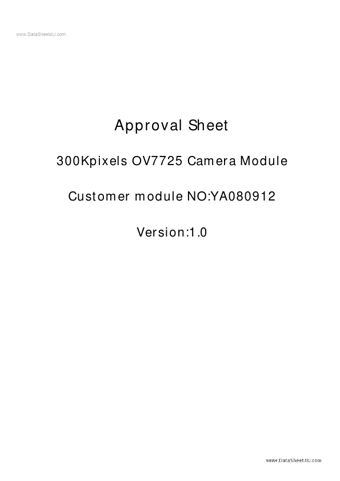

Datasheet preview – OV7725

Datasheet Details

Part number OV7725
Manufacturer ETC
File Size 112.69 KB
Description Camera Module
Datasheet download datasheet OV7725 Datasheet
Additional preview pages of the OV7725 datasheet.

Product details

Description

Pin Number 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 Name AGND HREF VSYNC PWDN PCLK AVDD DOVDD SIOD XCLK SIOC D0 D1 D2 D3 DGND D4 D5 D6 Pin Type Power Output Output Input PCLK Power Power I/O Input Input Output Output Output Output Power Output Output Output Function/Description Analog ground HREF output Vertical sync output Power Down mode selection 0: normal mode 1: power down mode Pixel clock output Analog power supply Power supply(1.8VDC) for digital logic core SCCB serial interf
