OV7410 - SINGLE-CHIP CMOS B&W NTSC CAMERA

Product Overview

OmniVision Technologies

Datasheet Details

Part number	OV7410
Manufacturer	OmniVision Technologies
File Size	223.90 KB
Description	SINGLE-CHIP CMOS B&W NTSC CAMERA
Datasheet	OV7410 Datasheet
Note	This datasheet PDF includes multiple part numbers: OV7410, OV7910. Please refer to the document for exact specifications by model.

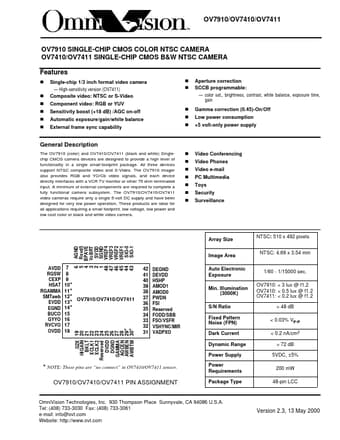

Additional preview pages of the OV7410 datasheet.

Product details

Description

The OV7910 (color) and OV7410/OV7411 (black and white) Singlechip CMOS camera devices are designed to provide a high level of functionality in a single small-footprint package.

Features

n Single-chip 1/3 inch format video camera.
High-sensitivity version (OV7411) n Composite video: NTSC or S-Video n Component video: RGB or YUV n Sensitivity boost (+18 dB) /AGC on-off n Automatic exposure/gain/white balance n External frame sync capability n Aperture correction n SCCB programmable:.
color sat. , brightness, contrast, white balance, exposure time, gain n Gamma correction (0.45)-On/Off n Low power consumption n +5 volt-only power supply General.
