OV7411

SINGLE-CHIP CMOS B&W NTSC CAMERA

OV7411 Features

* n Single-chip 1/3 inch format video camera

* High-sensitivity version (OV7411) n Composite video: NTSC or S-Video n Component video: RGB or YUV n Sensitivity boost (+18 dB) /AGC on-off n Automatic exposure/gain/white balance n External frame sync capability n Aperture correction n SCCB prog

OV7411 General Description

The OV7910 (color) and OV7410/OV7411 (black and white) Singlechip CMOS camera devices are designed to provide a high level of functionality in a single small-footprint package. All three devices support NTSC composite video and S-Video. The OV7910 imager also provides RGB and YCrCb video signals, an.

OV7411 Datasheet (223.90 KB)

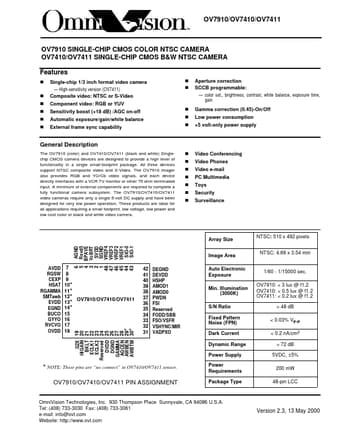

Preview of OV7411 PDF

Datasheet Details

Part number:

OV7411

Manufacturer:

OmniVision Technologies

File Size:

223.90 KB

Description:

Single-chip cmos b&w ntsc camera.
