OV7449 Datasheet - OmniVision Technologies

CMOS NTSC/PAL CAMERACHIP Sensor

OV7449 Features

* Single chip 1/3" format video camera

* Composite video (NTSC/PAL) differential output drive

* Sensitivity boost (+42 dB)

* Automatic exposure/gain with 16 zone control

* Auto white balance control

* Aperture/Gamma correction

* 50/60 Hz flicke

OV7449 General Description

The OV7949 (color) and OV7449 (B&W) single chip CMOS CAMERACHIP™ image sensors are designed to provide a high level of functionality for applications requiring a small footprint, low voltage, low power consumption and high performance color video camera. The OV7949 supports NTSC/PAL composite video .

OV7449 Datasheet (547.98 KB)

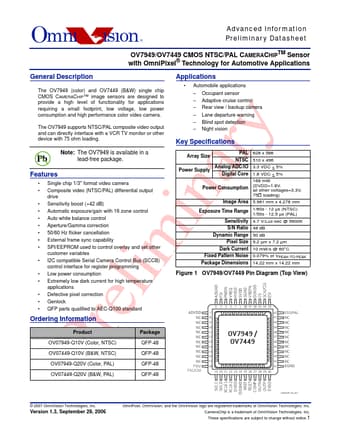

OV7449 Datasheet Preview — Preview of OV7449 PDF

Datasheet Details

Part number:

OV7449

Manufacturer:

OmniVision Technologies

File Size:

547.98 KB

Description:

Cmos ntsc/pal camerachip sensor.
Omni ision ® Advanced Information Preliminary Datasheet OV7949/OV7449 CMOS NTSC/PAL CAMERACHIPTM Sensor with OmniPixel® Technology for Automotive Ap.
