OV7670 - CMOS VGA Camera Sensor

Product Overview

OmniVision Technologies

Datasheet Details

Part number	OV7670
Manufacturer	OmniVision Technologies
File Size	536.82 KB
Description	CMOS VGA Camera Sensor
Datasheet	OV7670 Datasheet

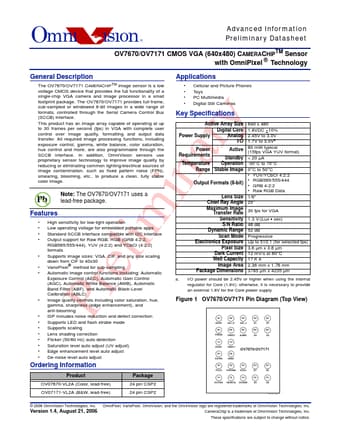

Additional preview pages of the OV7670 datasheet.

Product details

Description

The OV7670/OV7171 is a low voltage CMOS image sensor that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package.

Features

Note: The OV7670/OV7171 uses a lead-free package.
Output Formats (8-bit).
DataSheet4U. com DataShee Lens Size 1/6" Chief Ray Angle 25° Maximum Image 30 fps for VGA Transfer Rate Sensitivity 1.3 V/(Lux.
sec) S/N Ratio 46 dB Dynamic Range 52 dB Scan Mode Progressive Electronics Exposure Up to 510:1 (for selected fps) Pixel Size 3.6 µm x 3.6 µm Dark Current 12 mV/s at 60°C Well C.
