OV7650 - (OV7650 / OV7151) CMOS VGA

Product Overview

OmniVision

Datasheet Details

Part number	OV7650
Manufacturer	OmniVision
File Size	176.04 KB
Description	(OV7650 / OV7151) CMOS VGA
Datasheet	OV7650 Datasheet

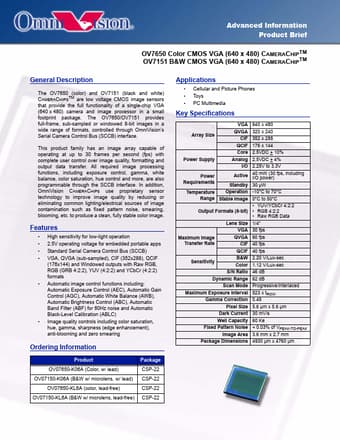

Additional preview pages of the OV7650 datasheet.

Product details

Description

The OV7650 (color) and OV7151 (black and white) CAMERACHIPSTM are low voltage CMOS image sensors that provide the full functionality of a single-chip VGA (640 x 480) camera and image processor in a small footprint package.

Features

High sensitivity for low-light operation.
2.5V operating voltage for embedded portable apps.
Standard Serial Camera Control Bus (SCCB).
VGA, QVGA (sub-sampled), CIF (352x288), QCIF (176x144) and Windowed outputs with Raw RGB, RGB (GRB 4:2:2), YUV (4:2:2) and YCbCr (4:2:2) formats.
Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Brightness Control (AB.
