OV7680

Color CMOS VGA (640x480) CAMERACHIP Sensor

OV7680 Features

* High sensitivity for low-light operation

* Low operating voltage for embedded portable apps

* Standard SCCB interface compatible with I2C interface

* Output support for Raw RGB, RGB565/444, ITU656 and YCbCr (4:2:2) formats

* Supports image sizes: VGA, CIF, a

OV7680 General Description

The OV7680 CAMERACHIP™ image sensor is a low voltage CMOS device that provides the full functionality of a single-chip VGA camera and image processor in a small footprint package. The OV7680 provides full-frame, sub-sampled or windowed 8-bit images in a wide range of formats, controlled through the .

OV7680 Datasheet (399.23 KB)

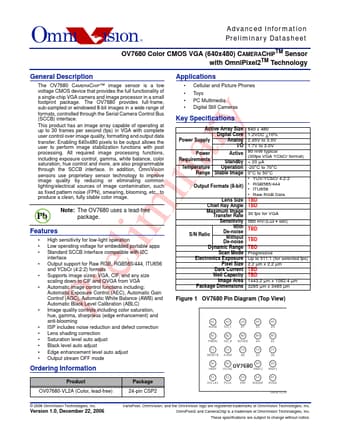

Preview of OV7680 PDF

Datasheet Details

Part number:

OV7680

Manufacturer:

OmniVision

File Size:

399.23 KB

Description:

Color cmos vga (640x480) camerachip sensor.
Omni ision ® Advanced Information Preliminary Datasheet OV7680 Color CMOS VGA (640x480) CAMERACHIPTM Sensor with OmniPixel2TM Technology General D.
