OV7740 - CMOS VGA Camera Chip Sensor

Product Overview

OmniVision

Datasheet Details

Part number	OV7740
Manufacturer	OmniVision
File Size	1.26 MB
Description	CMOS VGA Camera Chip Sensor
Datasheet	OV7740 Datasheet

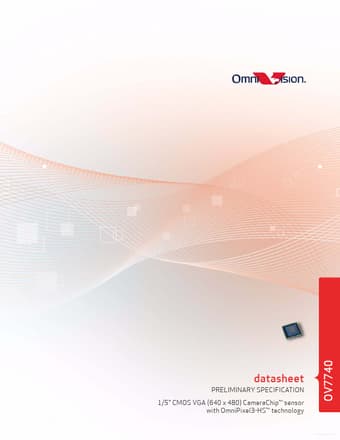

Additional preview pages of the OV7740 datasheet.

Product details

Description

2 system level description 2.1 overview 2.2 architecture 2.3 I/O control 2.4 format and frame rate 2.5 SCCB interface 2.6 power up sequence 2.7 standby and sleep 3 block level description 3.1 pixel array structure 4 image sensor core digital functions 4.1 mirror and flip 4.2 test pattern 4.3 AEC/AGC algorithms 4.3.1 overview 4.3.2 average-based algorithm 4.4 AEC/AGC steps 4.4.1 auto exposure control (AEC) 4.4.2 auto gain control (AGC) 4.5 black level calibration (BLC) 4.6 DIG GAIN / EVEN ODD 4.

Features

support for output formats: RAW RGB and YUV support for image sizes: VGA, and QVGA, CIF and any size smaller support for black sun cancellation support for internal and external frame synchronization standard SCCB serial interface digital video port (DVP) parallel output interface embedded one-time programmable (OTP) memory on-chip phase lock loop (PLL) embedded 1.5V regulator for core 00key specifications active array size: 656 x 488 power supply: core: 1.5VDC +/- 5%.
