EL4083C Datasheet, multiplier equivalent, Elantec Semiconductor

EL4083C Features

  • Multiplier  Novel current mode design Virtual ground current summing inputs Differential ground referenced current outputs  High speed (both inputs) 200 MHz bandwidth 12 ns 1% settling time  Lo

PDF File Details

Part number:

EL4083C

Manufacturer:

Elantec Semiconductor

File Size:

283.88kb

Download:

📄 Datasheet

Description:

Current mode four quadrant multiplier. The 4083C makes use of an Elantec fully complimentary oxide isolated bipolar process to produce a patent pending current in current o

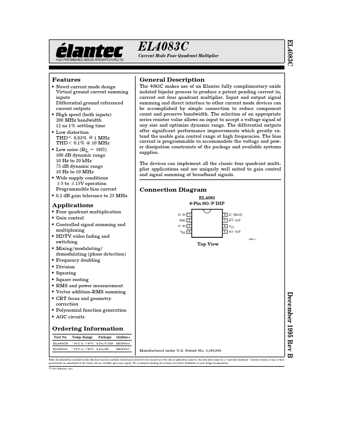

Datasheet Preview: EL4083C 📥 Download PDF (283.88kb)
Page 2 of EL4083C Page 3 of EL4083C

EL4083C Application

  • Applications and are uniquely well suited to gain control and signal summing of broadband signals Connection Diagram EL4083 8-Pin SO P DIP Applica
