EL4094C Datasheet, Control/fader, Elantec Semiconductor

EL4094C Features

  • Control/fader  Complete video fader  0 02% 0 04 differential gain phase 100% gain  Output amplifier included  Calibrated linear gain control  g 5V to g 15V operation  60 MHz bandwidth  Low the

PDF File Details

Part number:

EL4094C

Manufacturer:

Elantec Semiconductor

File Size:

311.82kb

Download:

📄 Datasheet

Description:

Video gain control/fader. The EL4094C is a complete two-input fader It combines two inputs according to the equation VOUT e VINA (0 5V a Vg) a VINB (0 5V b Vg)

Datasheet Preview: EL4094C 📥 Download PDF (311.82kb)

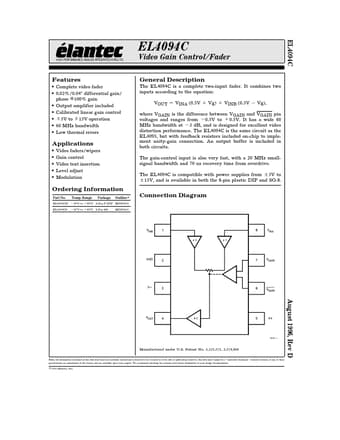

Page 2 of EL4094C Page 3 of EL4094C

EL4094C Application

  • Applications      Video faders wipers Gain control Video text insertion Level adjust Modulation Ordering Information Part No Temp Range Packag
