EL4093C

300 MHz DC-Restored Video Amplifier

EL4093C Features

*  High accuracy DC restoration for video  Low supply current of 9 5 mA typ  300 MHz bandwidth  1500V ms slew rate  0 04% differential gain and 0 02 differential phase into 150X for NTSC  1 5 mV max restored DC offset  Sample and hold amplifier with fast enable and low leakage  TTL-compatible

EL4093C General Description

The EL4093C is a complete DC-restored video amplifier subsystem featuring low power consumption and high slew rate It contains a current feedback amplifier and a sample and hold amplifier designed to stabilize video performance When the HOLD logic input is low the sample and hold may be used as a ge.

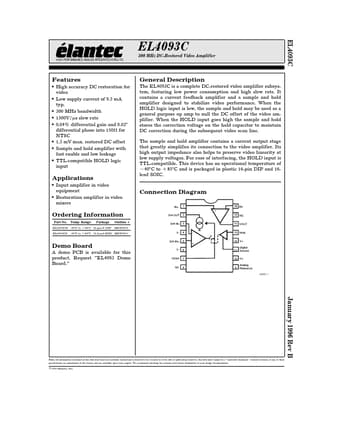

EL4093C Datasheet (342.40 KB)

Preview of EL4093C PDF

Datasheet Details

Part number:

EL4093C

Manufacturer:

Elantec Semiconductor

File Size:

342.40 KB

Description:

300 mhz dc-restored video amplifier.
