EL4093 Datasheet, Amplifier, Intersil

EL4093 Features

  • Amplifier
  • High accuracy DC restoration for video
  • Low supply current of 9.5mA typ.
  • 300MHz bandwidth
  • 1500V/µs slew rate
  • 0.04% differential gain and

PDF File Details

Part number:

EL4093

Manufacturer:

Intersil

File Size:

379.52kb

Download:

📄 Datasheet

Description:

300mhz dc-restored video amplifier. MIN IS,HOLD IS,SAMPLE Total Supply current in HOLD mode Total Supply current in SAMPLE mode TYP 9.5 8.5 MAX 11.5 10.5 UNITS mA

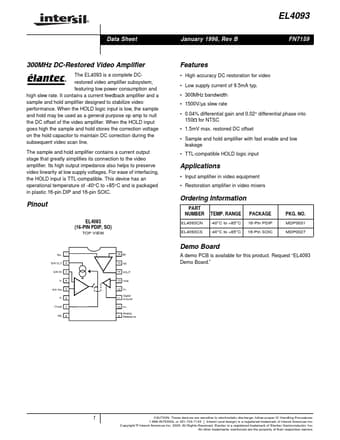

Datasheet Preview: EL4093 📥 Download PDF (379.52kb)
Page 2 of EL4093 Page 3 of EL4093

EL4093 Application

  • Applications
  • Input amplifier in video equipment
  • Restoration amplifier in video mixers Ordering Information PART NUMBER TEMP. RA
