EL4095C

Video Gain Control/Fader/Multiplexer

EL4095C Features

*  Full function video fader  0 02% 0 02 differential gain phase 100% gain  25 ns multiplexer included  Output amplifier included  Calibrated linear gain control  g 5V to g 15V operation  60 MHz bandwidth  Low thermal errors General Description The EL4095C is a versatile variable-gain buildin

EL4095C General Description

The EL4095C is a versatile variable-gain building block At its core is a fader which can variably blend two inputs together and an output amplifier that can drive heavy loads Each input appears as the input of a current-feedback amplifier and with external resistors can separately provide any gain d.

EL4095C Datasheet (457.38 KB)

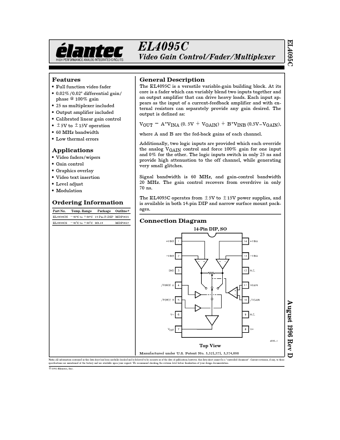

Preview of EL4095C PDF

Datasheet Details

Part number:

EL4095C

Manufacturer:

Elantec Semiconductor

File Size:

457.38 KB

Description:

Video gain control/fader/multiplexer.
