EDD2504AKTA

256M bits DDR SDRAM (64M words x 4 bits)

EDD2504AKTA Features

* Power supply : VDDQ = 2.5V ± 0.2V : VDD = 2.5V ± 0.2V

* Data rate: 333Mbps/266Mbps (max.)

* Double Data Rate architecture; two data transfers per clock cycle

* Bi-directional, data strobe (DQS) is transmitted /received with data, to be used in capturing data at the

EDD2504AKTA General Description

The EDD2504AK is a 256M bits Double Data Rate (DDR) SDRAM organized as 16,777,216 words × 4 bits × 4 banks. Read and write operations are performed at the cross points of the CK and the /CK. This highspeed data transfer is realized by the 2 bits prefetchpipelined architecture. Data strobe (DQS) both.

EDD2504AKTA Datasheet (492.04 KB)

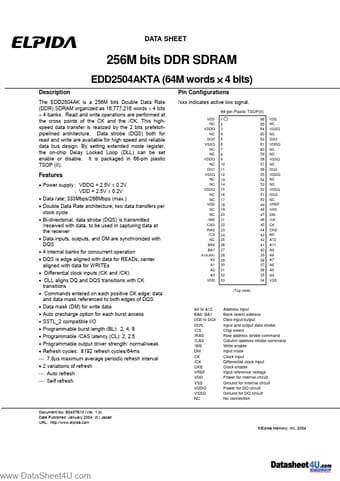

Preview of EDD2504AKTA PDF

Datasheet Details

Part number:

EDD2504AKTA

Manufacturer:

Elpida Memory

File Size:

492.04 KB

Description:

256m bits ddr sdram (64m words x 4 bits).
