EDD2516AKTA-E Datasheet - Elpida Memory

EDD2516AKTA-E 256M bits DDR SDRAM (16M words x16 bits DDR400)

The EDD2516AKTA is a 256M bits Double Data Rate (DDR) SDRAM organized as 4,194,304 words × 16 bits × 4 banks. Read and write operations are performed at the cross points of the CK and the /CK. This highspeed data transfer is realized by the 2 bits prefetchpipelined architecture. Data strobe (DQS) bo.

EDD2516AKTA-E Features

* Power supply : VDDQ = 2.5V ± 0.2V : VDD = 2.5V ± 0.2V

* Data rate: 333Mbps/266Mbps (max.)

* Double Data Rate architecture; two data transfers per clock cycle

* Bi-directional, data strobe (DQS) is transmitted /received with data, to be used in capturing data at the

EDD2516AKTA-E_ElpidaMemory.pdf

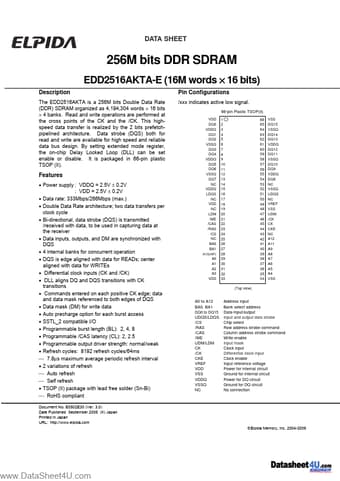

Preview of EDD2516AKTA-E PDF
EDD2516AKTA-E Datasheet Preview Page 2 EDD2516AKTA-E Datasheet Preview Page 3

Datasheet Details

Part number:

EDD2516AKTA-E

Manufacturer:

Elpida Memory

File Size:

606.56 KB

Description:

256m bits ddr sdram (16m words x16 bits ddr400).
