EBRT3E45B - Excellent Schottky Barrier Rectifiers

EBRT3E45B Description

EBRT3E45B Excellent Schottky Barrier Rectifiers DO-214AA(SMB) Primary Characteristics IF 3 A VRRM 45 V IFSM 30 A VF 0.43 V TJ max 150.

EBRT3E45B Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Mechanical Data ‧Cases: DO-214AA(SMB) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-ST

📥 Download Datasheet

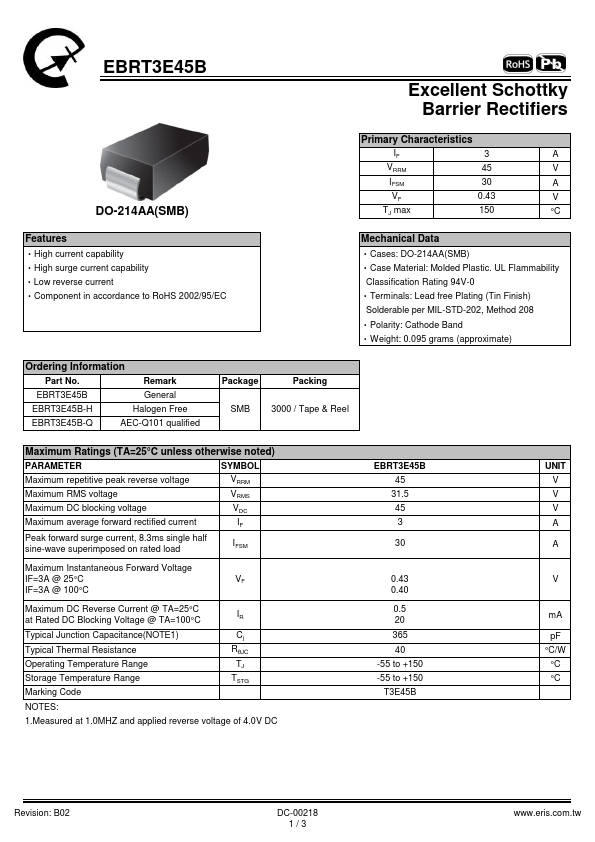

Preview of EBRT3E45B PDF

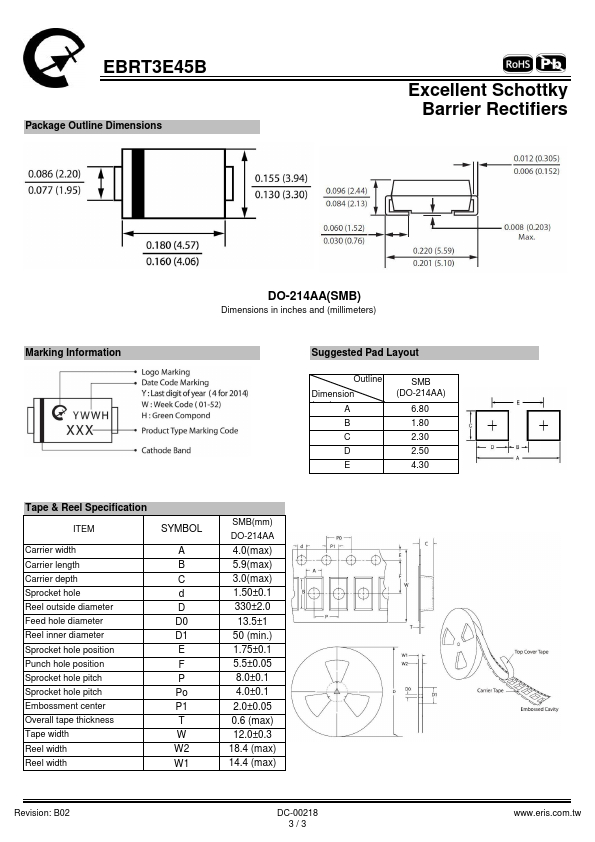

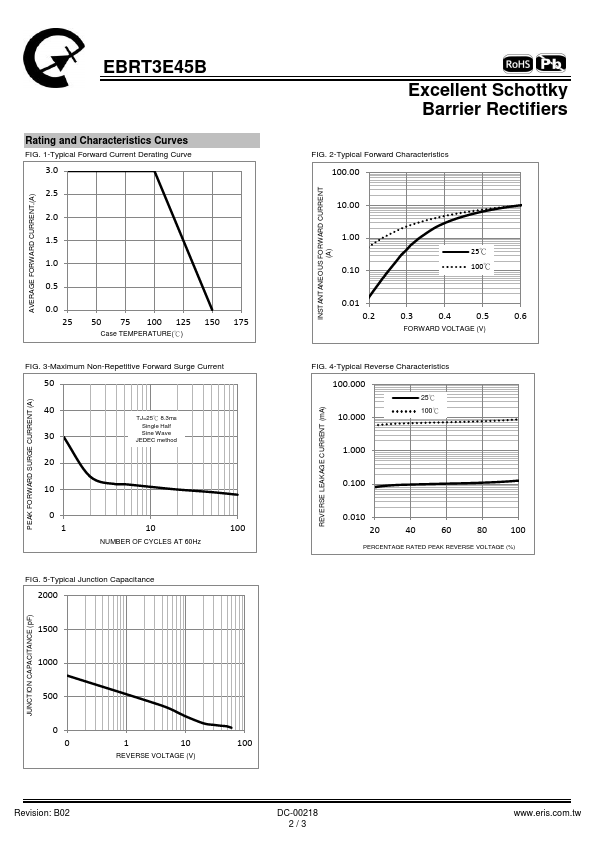

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT3E45B
Manufacturer
Eris
File Size
324.68 KB
Datasheet
EBRT3E45B-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
