EBRT3E45P - Excellent Schottky Barrier Rectifiers

EBRT3E45P Description

EBRT3E45P Excellent Schottky Barrier Rectifiers SOD-123F Primary Characteristics IF 3 A VRRM 45 V IFSM 30 A VF 0.43 V TJ max 125 °C .

EBRT3E45P Applications

* ‧Easy pick and place ‧Built-in strain relief ‧Fast switching speed Mechanical Data ‧Cases: SOD-123F ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Terminals: Lead free Plating (Tin Finish) Solderable per MIL-STD-202, Method 208 ‧Polarity: Cathode Band ‧Weight: 0.022 gr

📥 Download Datasheet

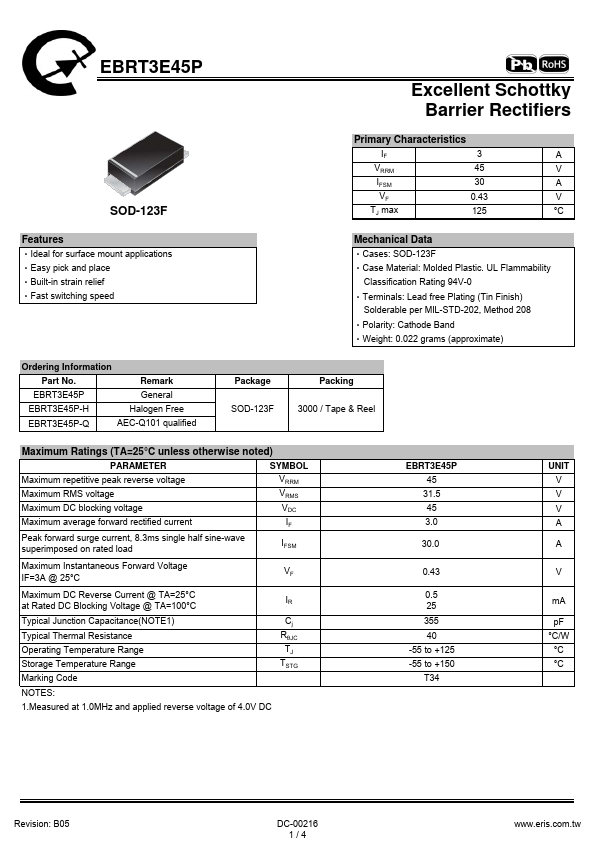

Preview of EBRT3E45P PDF

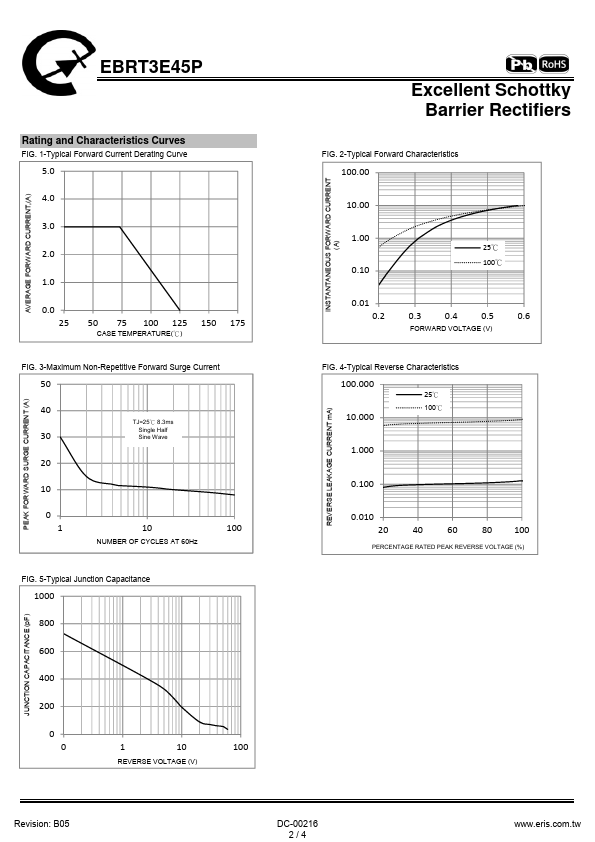

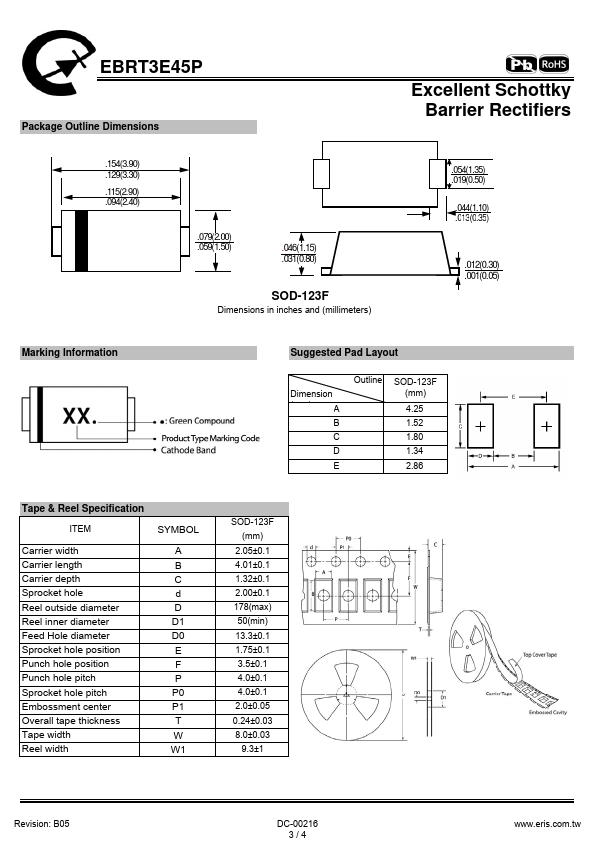

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EBRT3E45P
Manufacturer
Eris
File Size
272.87 KB
Datasheet
EBRT3E45P-Eris.pdf
Description
Excellent Schottky Barrier Rectifiers
