EBRT3E60S Excellent Schottky Barrier Rectifiers

Eris

Description

EBRT3E60S DO-41 .

📥 Download Datasheet

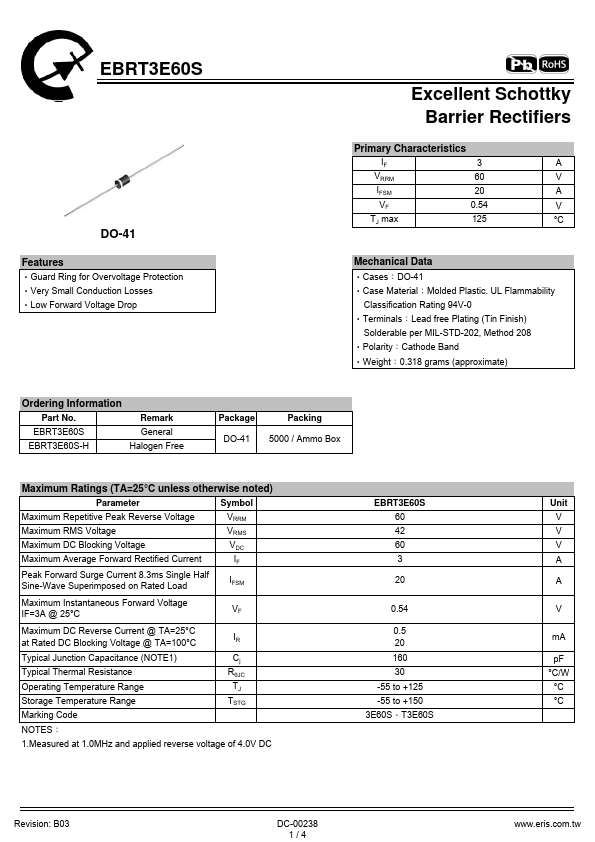

EBRT3E60S Datasheet Preview — Preview of EBRT3E60S PDF

Datasheet Specifications

Part number: EBRT3E60S
Manufacturer: Eris
File Size: 175.46 KB
Datasheet: EBRT3E60S-Eris.pdf
Description: Excellent Schottky Barrier Rectifiers

Features

* ‧Guard Ring for Overvoltage Protection ‧Very Small Conduction Losses ‧Low Forward Voltage Drop Excellent Schottky Barrier Rectifiers Primary Characteristics IF 3 A VRRM 60 V IFSM 20 A VF 0.54 V TJ max 125 °C Mechanical Data ‧Cases：DO-41 ‧Case Material：Molded Plastic. UL Flammabilit

Applications

* shall assume all risks of such use and will agree to hold Eris and all the companies whose products are represented on Eris website, harmless against all damages.
* No license, express or implied, by estoppels or otherwise, to any intellectual property is granted by this document or by any condu
