S3D General Purpose Rectifiers

S3D Description

S3A thru S3T General Purpose Rectifiers Glass Passivation Junction DO-214AB(SMC) .

S3D Features

* ‧High current capability ‧High surge current capability ‧Low reverse current ‧Component in accordance to RoHS 2002/95/EC Primary Characteristics IF 3 VRRM 1000 IFSM 100 VF 1.15 TJ max 175 Mechanical Data ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification R

📥 Download Datasheet

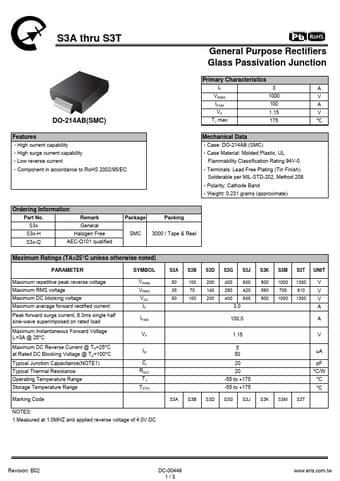

Preview of S3D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S3D
Manufacturer
Eris
File Size
268.87 KB
Datasheet
S3D-Eris.pdf
Description
General Purpose Rectifiers
