SM1550C, SM1520C Schottky Barrier Rectifiers

Eris

Description

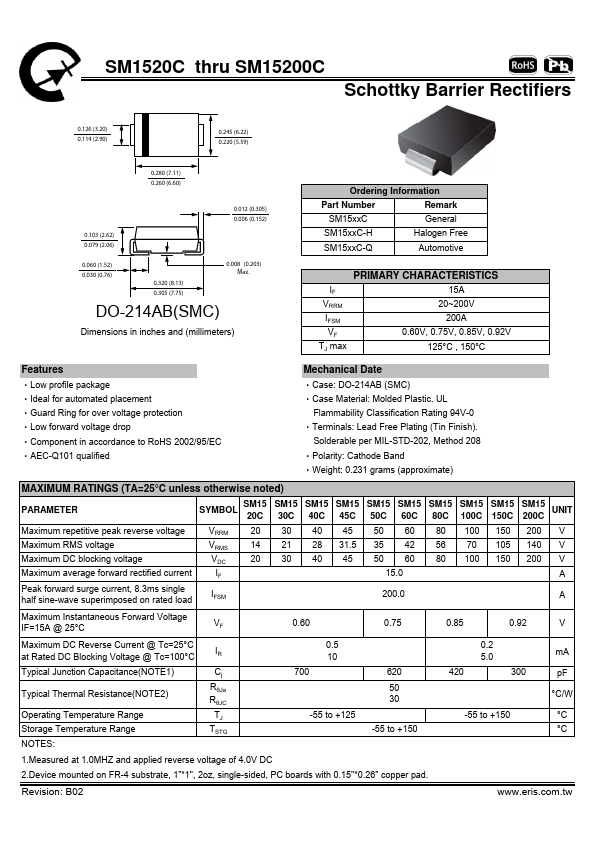

SM1520C thru SM15200C Schottky Barrier Rectifiers 0.126 (3.20) 0.114 (2.90) 0.245 (6.22) 0.220 (5.59) 0.280 (7.11) 0.260 (6.60) 0.103 (2.62) 0.079.

📥 Download Datasheet

SM1550C Datasheet Preview — This datasheet PDF includes multiple part numbers: SM1550C, SM1520C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SM1550C, SM1520C
Manufacturer: Eris
File Size: 185.08 KB
Datasheet: SM1520C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SM1550C, SM1520C.
Please refer to the document for exact specifications by model.

Features

* ‧Low profile package ‧Ideal for automated placement ‧Guard Ring for over voltage protection ‧Low forward voltage drop ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Mechanical Date ‧Case: DO-214AB (SMC) ‧Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 ‧Te
