Datasheet Specifications
- Part number
- SM240NH
- Manufacturer
- Eris
- File Size
- 197.69 KB
- Datasheet
- SM240NH-Eris.pdf
- Description
- Schottky Barrier Rectifiers
Description

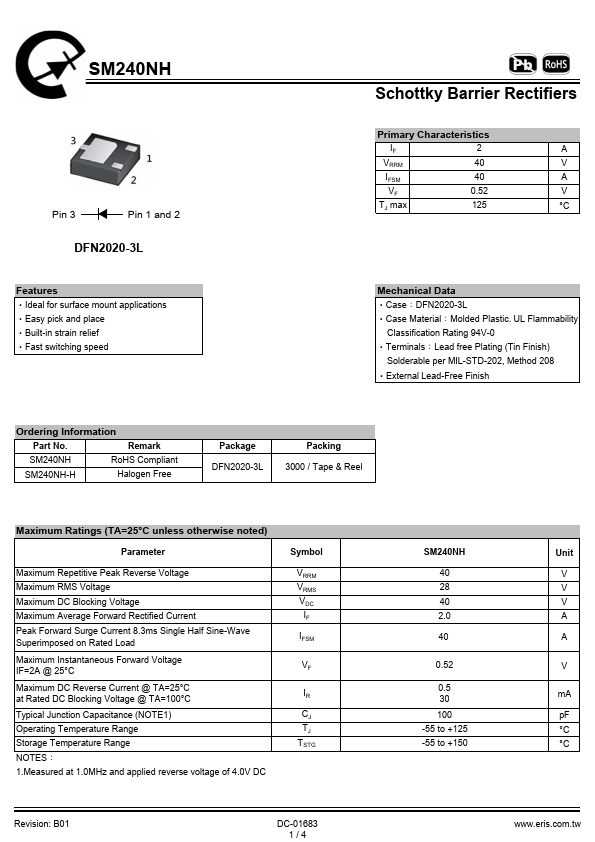

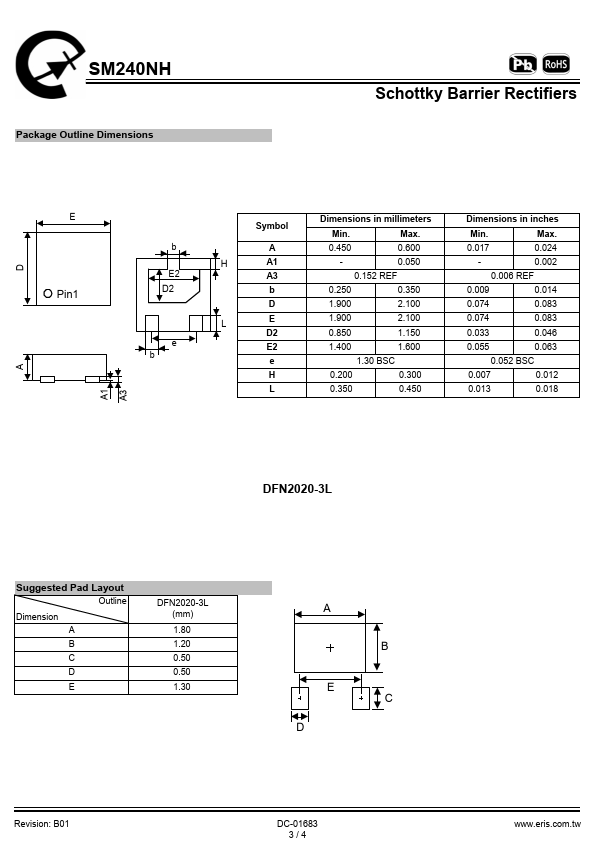

SM240NH Pin 3 Pin 1 and 2 DFN2020-3L .
Applications
* ‧Easy pick and place ‧Built-in strain relief ‧Fast switching speed Schottky Barrier Rectifiers Primary Characteristics IF 2 A VRRM 40 V IFSM 40 A VF 0.52 V TJ max 125 °C Mechanical Data ‧Case：DFN2020-3L ‧Case Material：Molded Plastic. UL Flammability Classification Rating 94V-0 ‧TerSM240NH Distributors
