SP4060C, SP4020C Schottky Barrier Rectifiers

Eris

Description

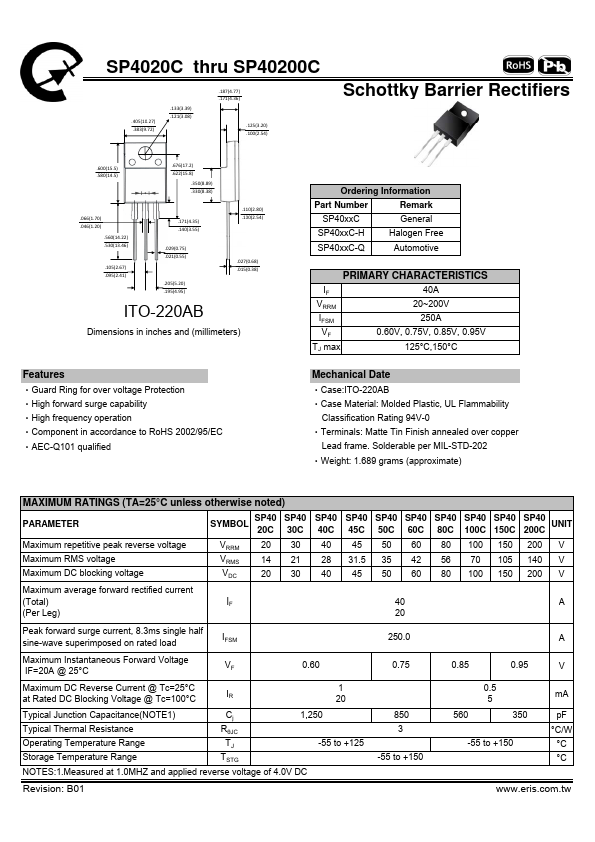

SP4020C thru SP40200C .405(10.27) .383(9.72) .133(3.39) .121(3.08) .187(4.77) .171(4.36) .125(3.20) .100(2.54) Schottky Barrier Rectifiers .600(1.

📥 Download Datasheet

SP4060C Datasheet Preview — This datasheet PDF includes multiple part numbers: SP4060C, SP4020C. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SP4060C, SP4020C
Manufacturer: Eris
File Size: 224.00 KB
Datasheet: SP4020C-Eris.pdf
Description: Schottky Barrier Rectifiers
Note: This datasheet PDF includes multiple part numbers: SP4060C, SP4020C.
Please refer to the document for exact specifications by model.

Features

* ‧Guard Ring for over voltage Protection ‧High forward surge capability ‧High frequency operation ‧Component in accordance to RoHS 2002/95/EC ‧AEC-Q101 qualified Ordering Information Part Number SP40xxC Remark General SP40xxC-H Halogen Free SP40xxC-Q Automotive PRIMARY CHARACTERISTICS IF 40
