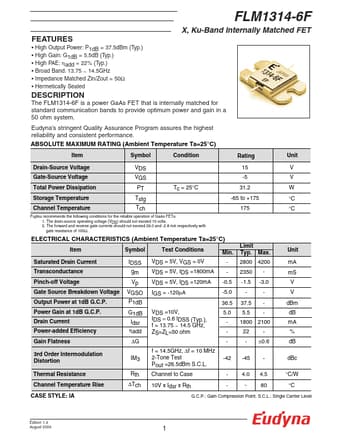

FLM1314-6F Datasheet, Fet, Eudyna

FLM1314-6F Features

• Fet
• High Output Power: P1dB = 37.5dBm (Typ.) High Gain: G1dB = 5.5dB (Typ.) High PAE: ηadd = 22% (Typ.) Broad Band: 13.75 ~ 14.5G

PDF File Details

Part number:

FLM1314-6F

Manufacturer:

Eudyna

File Size:

295.88kb

Download:

📄 Datasheet

Description:

X / ku-band internally matched fet. The FLM1314-6F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a
