CLS15-22C-L213G-TR8

Surface - Mount RGB Color Sensor

CLS15-22C-L213G-TR8 Features

* ․Surface-mount plastic package ․High sensitivity for Red, Green, and Blue light source CLS15-22C/L213R/TR8 (λp= 620nm, Red) CLS15-22C/L213G/TR8 (λp= 550nm, Green) CLS15-22C/L213B/TR8 (λp= 470nm, Blue) ․Good stable analog output with temperature shift ․Size: 3.2mm (L)

* 2.7mm (W)

* 1.1mm (H) ․Ope

CLS15-22C-L213G-TR8 General Description

CLS15-22C/L213/TR8 series color sensor device is one channel Si photodiode sensitivity to Red, Green and Blue region spectrum in miniature SMD package. Everlight color sensor series product is the good effective and low cost solution to white color balance, color detection and color management appl.

CLS15-22C-L213G-TR8 Datasheet (617.47 KB)

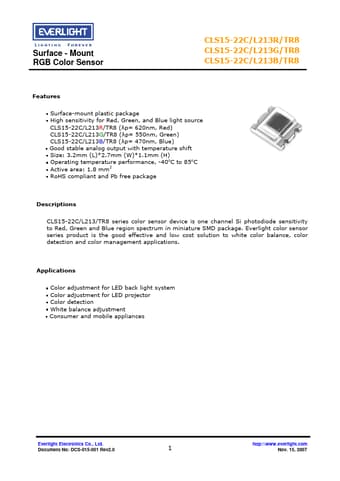

Preview of CLS15-22C-L213G-TR8 PDF

Datasheet Details

Part number:

CLS15-22C-L213G-TR8

Manufacturer:

Everlight

File Size:

617.47 KB

Description:

Surface - mount rgb color sensor.
