CLS12 DC-DC CONVERTER

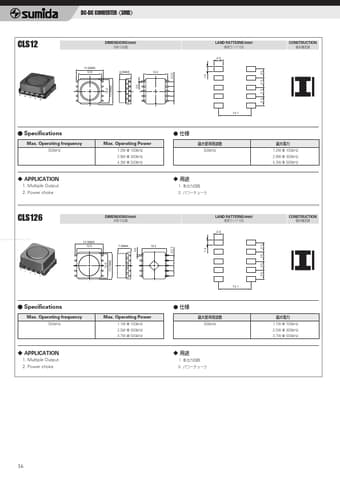

DC-DC CONVERTER SMD CLS12 14.5MAX. 12.0 DIMENSIONS(mm) LAND PATTERNS(mm) CONSTRUCTION 2.0 4-2.5 1.5 12.0 13.9MAX. 0.6 13.1 K Specifications Max. Operating frequency 500kHz Max. Operating Power 1.2W @ 100kHz 2.9W @ 300kHz 4.3W @ 500kHz 500kHz 1.2W @ 100kHz 2.9W @ 300kHz 4.3W @ 500kHz APPLICATION 1. Multiple Output 2. Power choke CLS126 www.DataSheet4U.com 14.5MAX. 12.0 DIMENSIONS(mm) LAND PATTERNS(mm) 2.5 2.5 2.5 2.5 6.0MAX. 12.2 CONSTRUCTION 2.0 4-2.5 0.6 7.5MAX. 12.2.

CLS12_SumidaCorporation.pdf

CLS12 Datasheet Preview — Preview of CLS12 PDF

Datasheet Details

Part number:

CLS12

Manufacturer:

Sumida Corporation

File Size:

121.09 KB

Description:

Dc-dc converter.
