CLS03 Datasheet - Toshiba Semiconductor

CLS03 Switching-Mode Power Supply

CLS03 TOSHIBA Schottky Barrier Diode CLS03 Switching-Mode Power Supply (Secondary-Rectification) Applications (Low Voltage) DC/DC Converter Applications ② Unit: mm Forward voltage: VFM = 0.58 V (max) Average forward current: IF (AV) = 10 A Repetitive peak reverse voltage: VRRM = 60 V Suitable for compact assembly due to small surface-mount package: “L FLATTM” (Toshiba package name) ① Absolute Maximum Ratings (Ta = 25°C) 3 .2±0.2 Characteristi.

CLS03_ToshibaSemiconductor.pdf

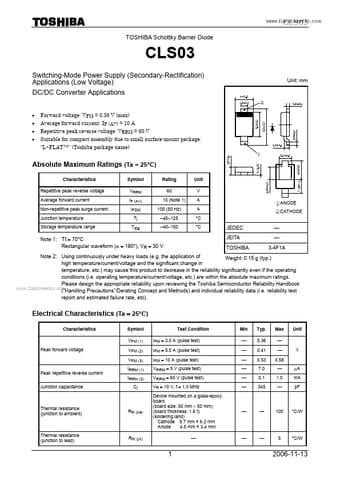

Preview of CLS03 PDF
CLS03 Datasheet Preview Page 2 CLS03 Datasheet Preview Page 3

Datasheet Details

Part number:

CLS03

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

241.65 KB

Description:

Switching-mode power supply.
