CLS01 Datasheet - Toshiba Semiconductor

CLS01 Switching-Mode Power Supply

CLS01 TOSHIBA Schottky Barrier Diode CLS01 Switching-Mode Power Supply (Secondary-Rectification) Applications (Low Voltage) DC/DC Converter Applications ② Unit: mm Forward voltage: VFM = 0.47 V (max) Average forward current: IF (AV) = 10 A Repetitive peak reverse voltage: VRRM = 30 V Suitable for compact assembly due to small surface-mount package: “L FLATTM” (Toshiba package name) ① Absolute Maximum Ratings (Ta = 25°C) Characteristics Repetit.

CLS01_ToshibaSemiconductor.pdf

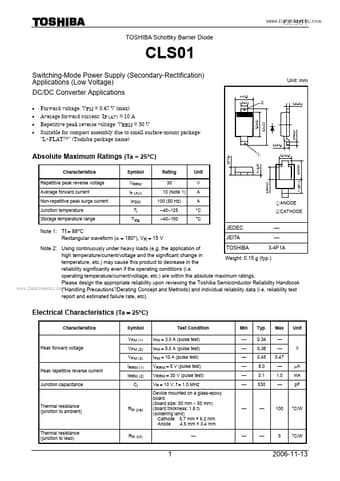

Preview of CLS01 PDF
CLS01 Datasheet Preview Page 2 CLS01 Datasheet Preview Page 3

Datasheet Details

Part number:

CLS01

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

242.30 KB

Description:

Switching-mode power supply.
