Description
Applications

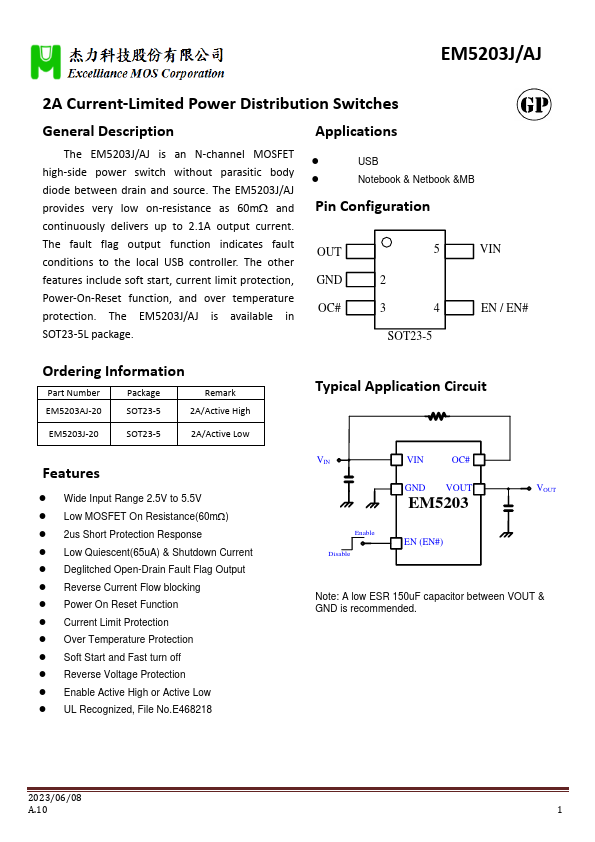

The EM5203J/AJ is an N-channel MOSFET high-side power switch without parasitic body diode between drain and source.The EM5203J/AJ provides very low on-resistance as 60m and continuously delivers up to 2.1A output current.The fault flag output function indicates fault conditions to the local USB controller.The other
Features
- include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM5203J/AJ is available in SOT23-5L package.
- USB.
- Notebook & Netbook &MB

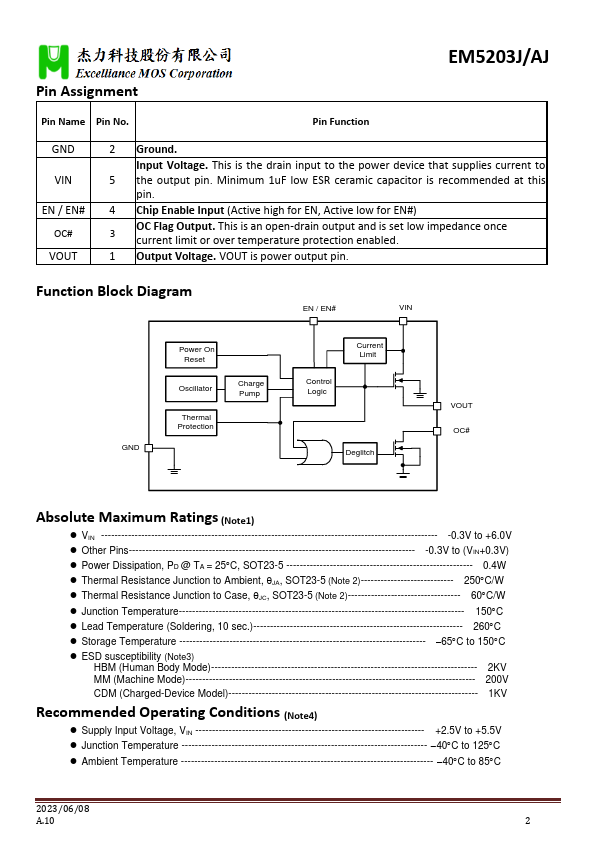

Pin Configuration
OUT GND OC#
5
2
3
4
SOT23-5
VIN EN / EN#
Ordering Information
Part Number
Package
Remark
EM5203AJ-20 SOT23-5
2A/Active High
EM5203J-20
SOT23-5
2A/Active Low
Features.
- Wide Input Range 2.5V to 5.5V.
- Low MOSFET On Resistance(60m).
- 2us Short Protection Re.
EM5203AJ-20-ExcellianceMOS.pdf
