EM5203J Datasheet - Excelliance MOS

2A Current-Limited Power Distribution Switches

EM5203J Features

* include soft start, current limit protection, Power-On-Reset function, and over temperature protection. The EM5203J/AJ is available in SOT23-5L package.

* USB

* Notebook & Netbook &MB Pin Configuration OUT GND OC# 5 2 3 4 SOT23-5 VIN EN / EN# Ordering Information Part Number P

EM5203J General Description

Applications The EM5203J/AJ is an N-channel MOSFET high-side power switch without parasitic body diode between drain and source. The EM5203J/AJ provides very low on-resistance as 60m and continuously delivers up to 2.1A output current. The fault flag output function indicates fault conditions to .

EM5203J Datasheet (891.32 KB)

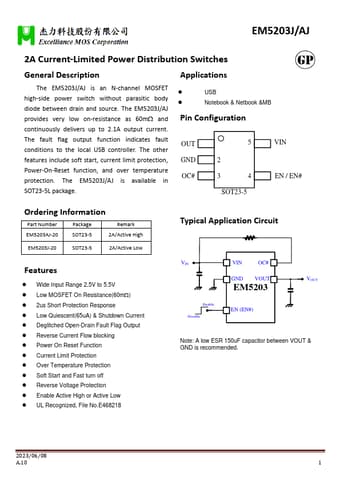

EM5203J Datasheet Preview — Preview of EM5203J PDF

Datasheet Details

Part number:

EM5203J

Manufacturer:

Excelliance MOS

File Size:

891.32 KB

Description:

2a current-limited power distribution switches.
