EMB12N03V - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

N-CH BVDSS RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V ID @TC=25℃ 30V 11.5mΩ 16.0mΩ 39A ID @TA=25℃ 9.9A Single N Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMIT

📥 Download Datasheet

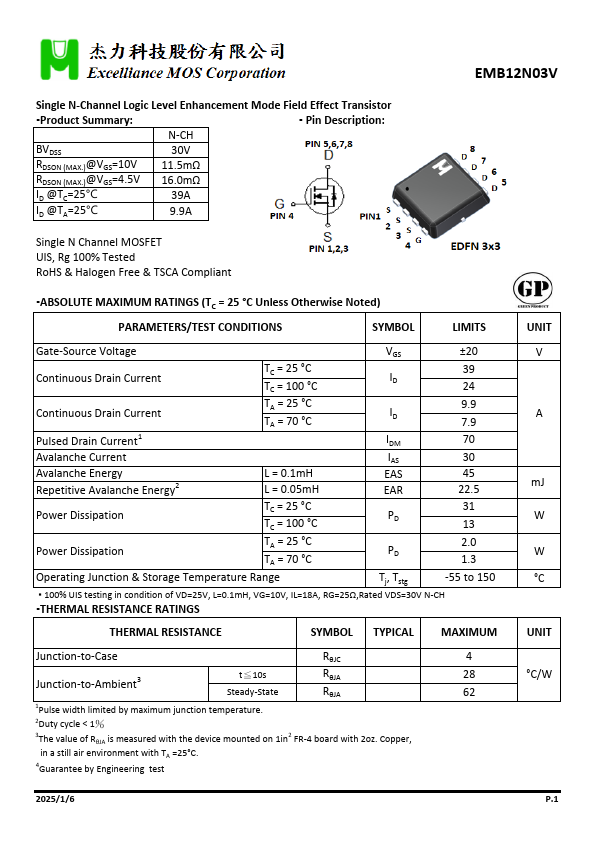

Datasheet preview – EMB12N03V

Datasheet Details

Part number EMB12N03V
Manufacturer Excelliance MOS
File Size 364.01 KB
Description Single N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMB12N03V Datasheet

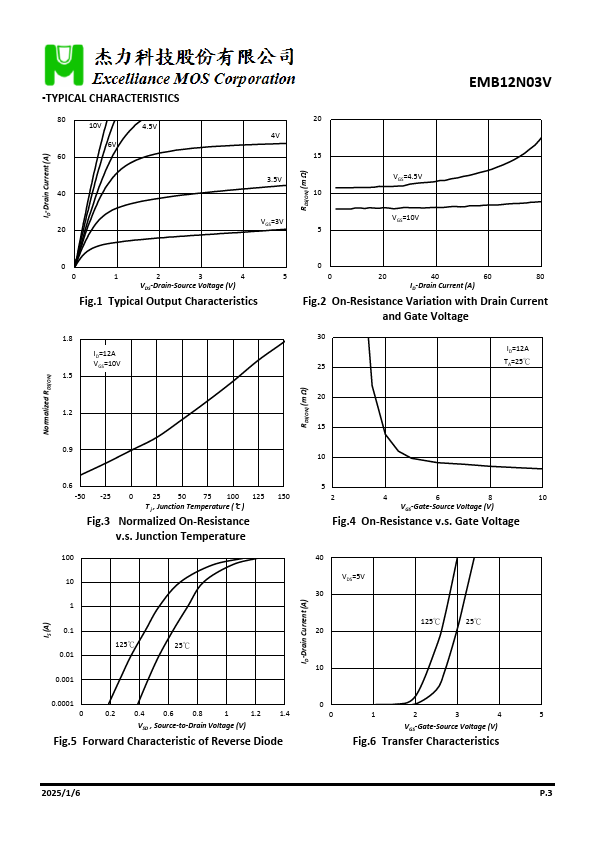

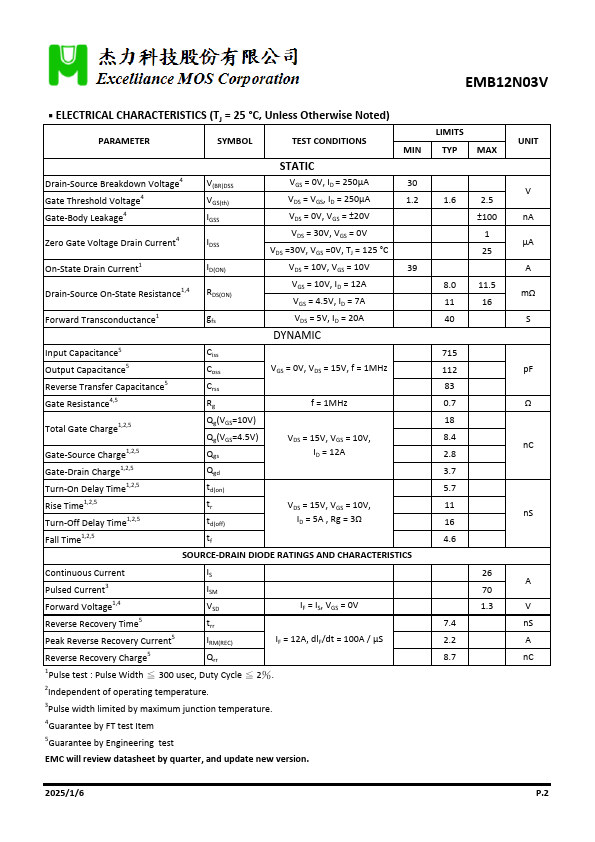

Additional preview pages of the EMB12N03V datasheet.
