EMB90P06CS - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Product Overview

📥 Download Datasheet

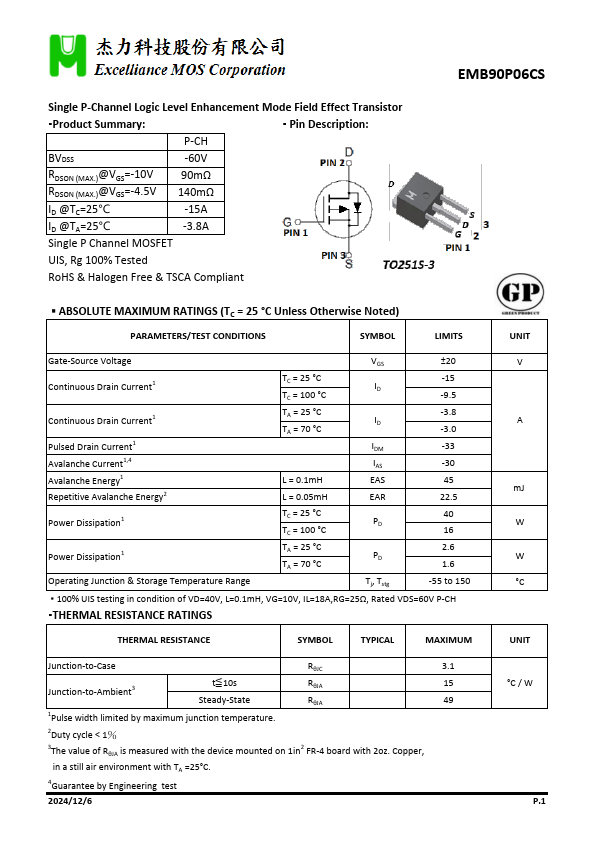

Datasheet preview – EMB90P06CS

Datasheet Details

Part number EMB90P06CS
Manufacturer Excelliance MOS
File Size 349.02 KB
Description P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMB90P06CS Datasheet

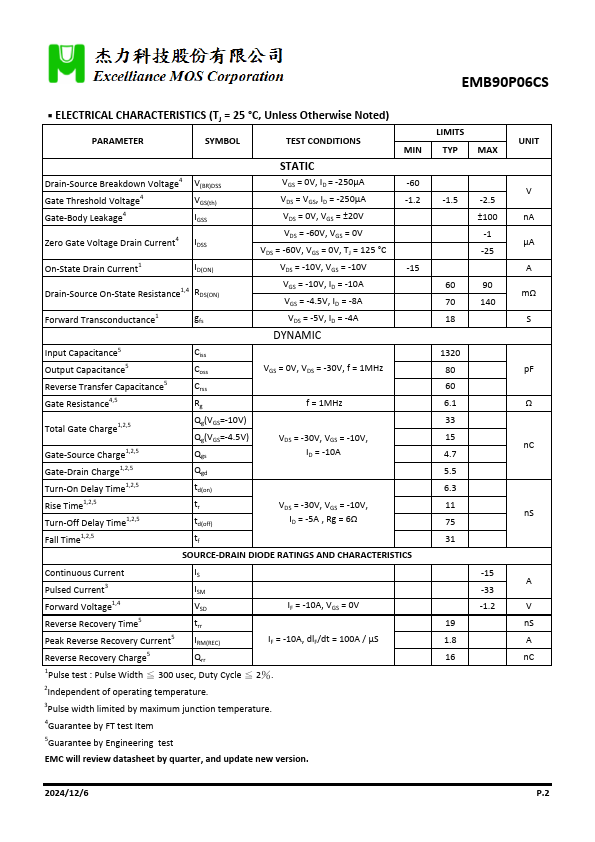

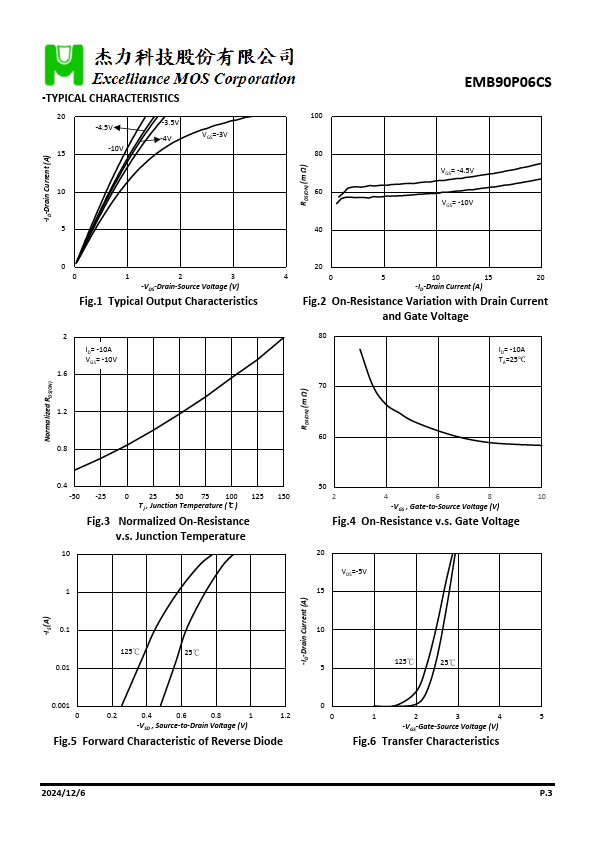

Additional preview pages of the EMB90P06CS datasheet.

Product details

Description

P-CH BVDSS -60V RDSON (MAX.)@VGS=-10V 90mΩ RDSON (MAX.)@VGS=-4.5V 140mΩ ID @TC=25℃ -15A ID @TA=25℃ -3.8A Single P Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±20 Continuous Drain Current1 TC = 25 °C TC = 100 °C ID -15 -9.5 Continuous Drain Current1 Pulsed Drain Current1 Avalanche Current1,4 Avalanche Energy1 TA =
