FNK3070PD Datasheet, Mosfet, FNK

FNK3070PD Features

• Mosfet
• VDS=-30V, ID=-70A R DS(ON) < 8.3 mΩ @ VGS=-10V Schematic diagram
• High density cell design for ultra low Rdson
• Fully characterized avalanche voltage and c

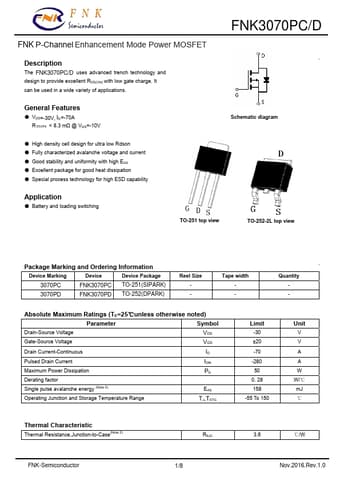

PDF File Details

Part number:

FNK3070PD

Manufacturer:

FNK

File Size:

1.08MB

Download:

📄 Datasheet

Description:

P-channel power mosfet. The FNK3070PC/D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wid

FNK3070PD Application

• Applications General Features
• VDS=-30V, ID=-70A R DS(ON) < 8.3 mΩ @ VGS=-10V Schematic diagram
• High density cell design for
